Product Summary
The DS1337 serial real-time clock is a low-power clock/calendar with two programmable time-of-day alarms and a programmable square-wave output. Address and data are transferred serially through an I2C bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator.
The device is fully accessible through the serial interface while VCC is between 1.8V and 5.5V. I2C operation is not guaranteed below 1.8V. Timekeeping operation is maintained with VCC as low as 1.3V.
The DS1341 and DS1342 are pin compatible devices that allow use of crystals with an equivalent series resistance (ESR) up to 100kΩ.
The device is fully accessible through the serial interface while VCC is between 1.8V and 5.5V. I2C operation is not guaranteed below 1.8V. Timekeeping operation is maintained with VCC as low as 1.3V.
The DS1341 and DS1342 are pin compatible devices that allow use of crystals with an equivalent series resistance (ESR) up to 100kΩ.
Parametrics
Timekeeping & Real-Time Clocks | |||||||||||||||||
Part Number | Interface |
VSUPPLY (V) |
Time Keeping Current (nA) |
CL (pF) |
Memory Type | Time of Day Alarms | Integrated Resonator | ||||||||||
typ | |||||||||||||||||
DS1337 | I2C |
|
425 | 6 | None | 2 | - | ||||||||||
DS1337C | XTAL |
Features
- Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap-Year Compensation Valid Up to 2100
- Available in a Surface-Mount Package with an Integrated Crystal (DS1337C)
- I2C Serial Interface
- Two Time-of-Day Alarms
- Oscillator Stop Flag
- Programmable Square-Wave Output Defaults to 32kHz on Power-Up
- Available in 8-Pin DIP, SO, or μSOP
- -40°C to +85°C Operating Temperature Range
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

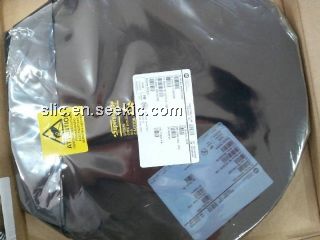

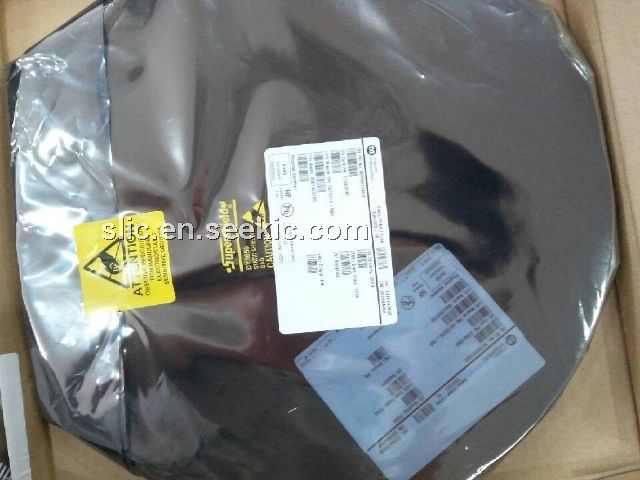

![]() DS1337S+T&R |
![]() Maxim Integrated Products |
![]() Real Time Clock I2C Serial RTC |
![]() Data Sheet |
![]()
|
|
||||||||||||
